• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use430m³/h
• Intensive844 m³/h

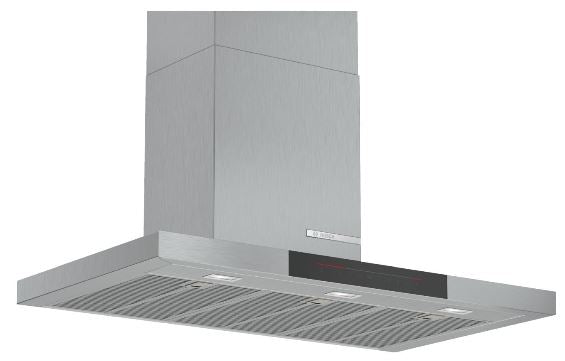

• 90 cm Wall Hood Hood, Silver metallic

• air quality sensor 1.1
• Automatic intensive revert after 6 min.

• Automatic run on for 10 min.

• Easy to clean yes

• softLight

• 3 x 1.5W LED

• Saturation indicator for metal and charcoal filter

• Removable metal grease filter, dishwasher safe

• 3 removable metal grease filters

• Energy Efficiency Class: A+


• Dimensions exhaust air (HxWxD mm): 614-954 x 898 x 500
• Dimensions recirculating (HxWxD mm): 614-1064 x 898 x 500

• Dimensions recirculating with CleanAir module (HxWxD mm):

• 689 x 898 x 500- mounting with outer chimney
• 795-1139 x 898 x 500 - mounting with telescopic chimney
• Suitable for ducted or recirculating operation

• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

• Electrical cable lenght 1.3 m

• Voltage: 220 - 240 V


Basic technical information

• Number of induction plates 2
• Power of heating element (kW) 2.2 kW
• Power of 2nd heating element (kW) 1.4 kW
• Voltage 220-240 V

Cooking Zone

• 2 Induction cooking zones
• Variable 17-stage power settings for each zone


Cooking zones:

• 1 x Ø 210 mm, 2200 W (max. Power level 3700 W) Induction
• 1 x Ø 145 mm, 1400 W (max. Power level 2200 W) Induction

Design

• Comfort profile (ceramic front facette with stainless steel side trim)
• Can be combined with other A01 hobs

• DirectSelect touch control panel


Key Functions

• Switch off timer for every cooking zone
• Count down function
• count-up timer, per cooktop
• Automatic pan recognition

• Power management function
• Automatic safety switch off
• Safety lock

QuickStart Function

• ReStart Function
• 2 stage residual heat indicator for each zone


Dimensions

• Dimensions of the product (HxWxD mm) : 51 x 306 x 527
• Length of main cable: 110 cm

• Electrical connection rating: 3700 W

• Required niche size for installation (HxWxD mm) : 51 x 270 - 270 x 490-500

• Type of appliance width (cm) 30 cm

• Total number of positions that can be used at the same time 2

• Basic surface material Ceramic

• Main colour of product Black

• Energy consumption of hob 194.6 Wh/kg

• Dimensions of the product (mm) 48 x 306 x 527 mm

• Minimum height for installation (mm) 48 mm

• Maximum height for installation (mm) 48 mm

• Minimum width for installation (mm) 270 mm

• Maximum width for installation (mm) 270 mm

• Depth for installation (mm) 490 mm

• Appliance height above the worktop 6.0 mm

• Connection Rating (W) 3,200 W

• Current (A) 16 A

• Voltage (V) 220-240 V

• Length electrical supply cord (cm) 100.0 cm

• Plug type no plug
