DESIGN

• Wall mounted hood
• Box brand design
• 90 cm wide

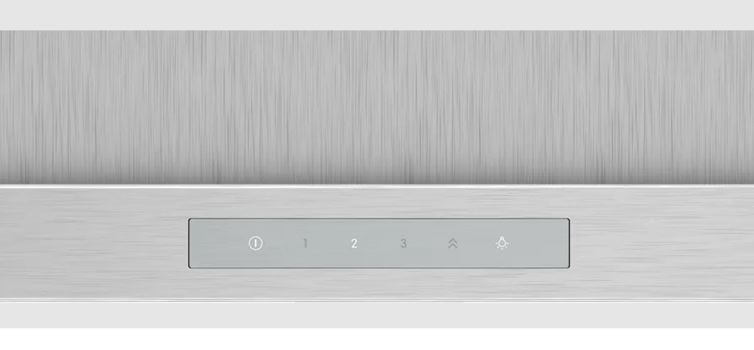

• TouchControl with Electronic display

KEY FUNCTIONS

• 3 speeds plus intensive setting
• Max. extraction rate according to EN 61591: 721 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
• Max. normal use: 55 dB(A) re 1 pW (42 dB(A) re 20 µPa sound pressure)
• Intensive: 66 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
• Extraction rate in recirculation mode:
• Max. normal use: 332 m³/h
• Intensive: 393 m³/h
• Noise levels in recirculation mode:
• Max. normal use: 70 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
• Intensive: 73 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)

COMFORT

• Automatic intensive revert after 6 min.
• Easy to clean yes
• Efficient BLDC-technology
• 3 x 1.5W LED
• Light Intensity: 359 lux
• Colour Temperature: 3500 K
• Removable metal grease filter, dishwasher safe
• Additional noise insulation
• with one-way flap
• Energy Efficiency Class: A+
• Blower Efficiency Class: A*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: B*

TECHNICAL INFORMATION

• Suitable for ducted or recirculating operation
• Recirc. kit or clean air kit
• Wall fixing system
• Dimensions recirculating with CleanAir module (HxWxD mm):
• 689 x 898 x 500 - mounting with outer chimney
• 809-1139 x 898 x 500 - mounting with telescopic chimney
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
• Dimensions exhaust air (HxWxD mm): 628-954 x 898 x 500
• Dimensions recirculating (HxWxD mm): 628-1064 x 898 x 500
• Electrical connection rating: 145 W
• Electrical cable lenght 1.3 m
• Voltage: 220 - 240 V
